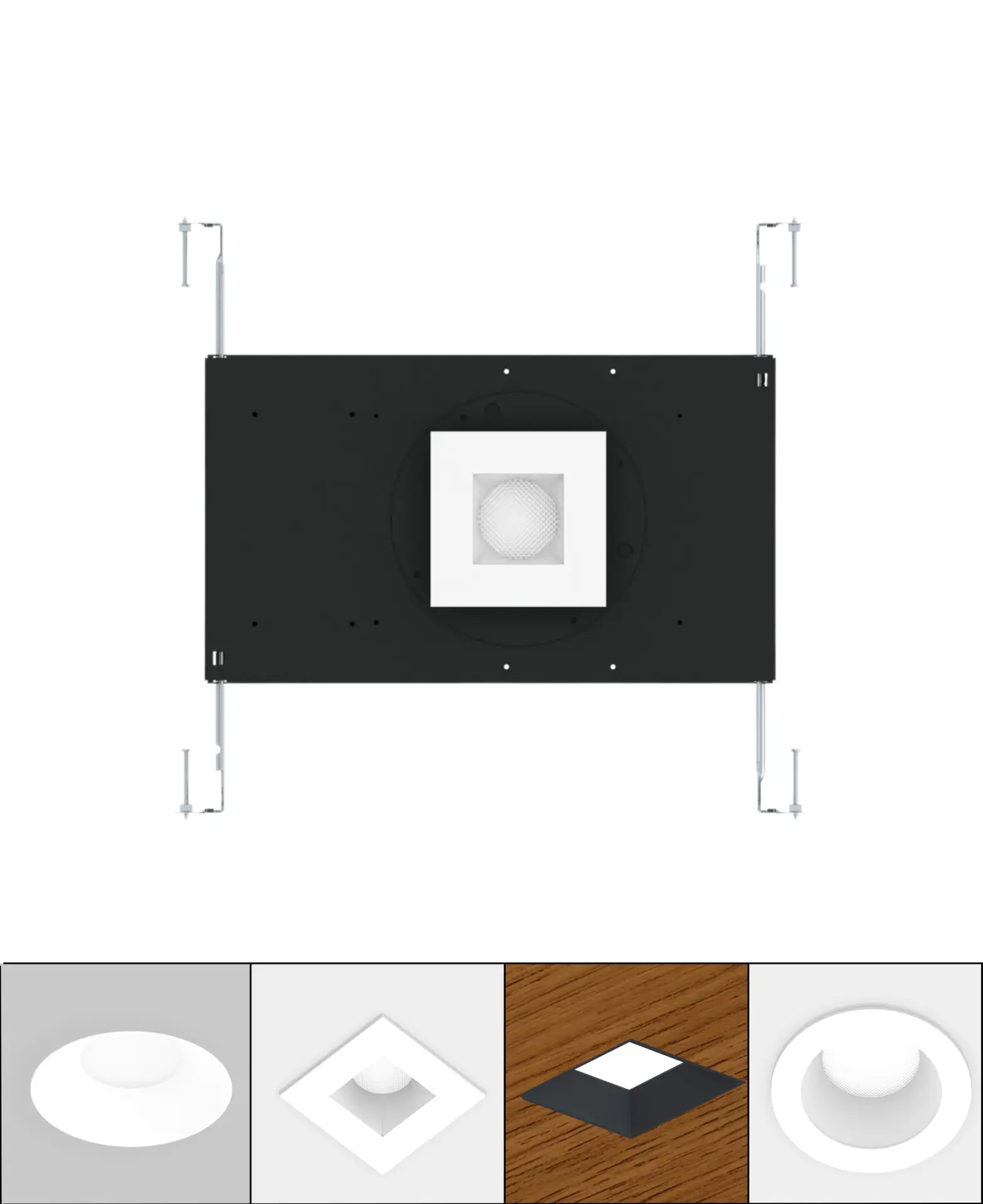

Novation^® 3″ LED Downlight

Ultra Shallow Housing Fixed

for 5/8″ Drywall

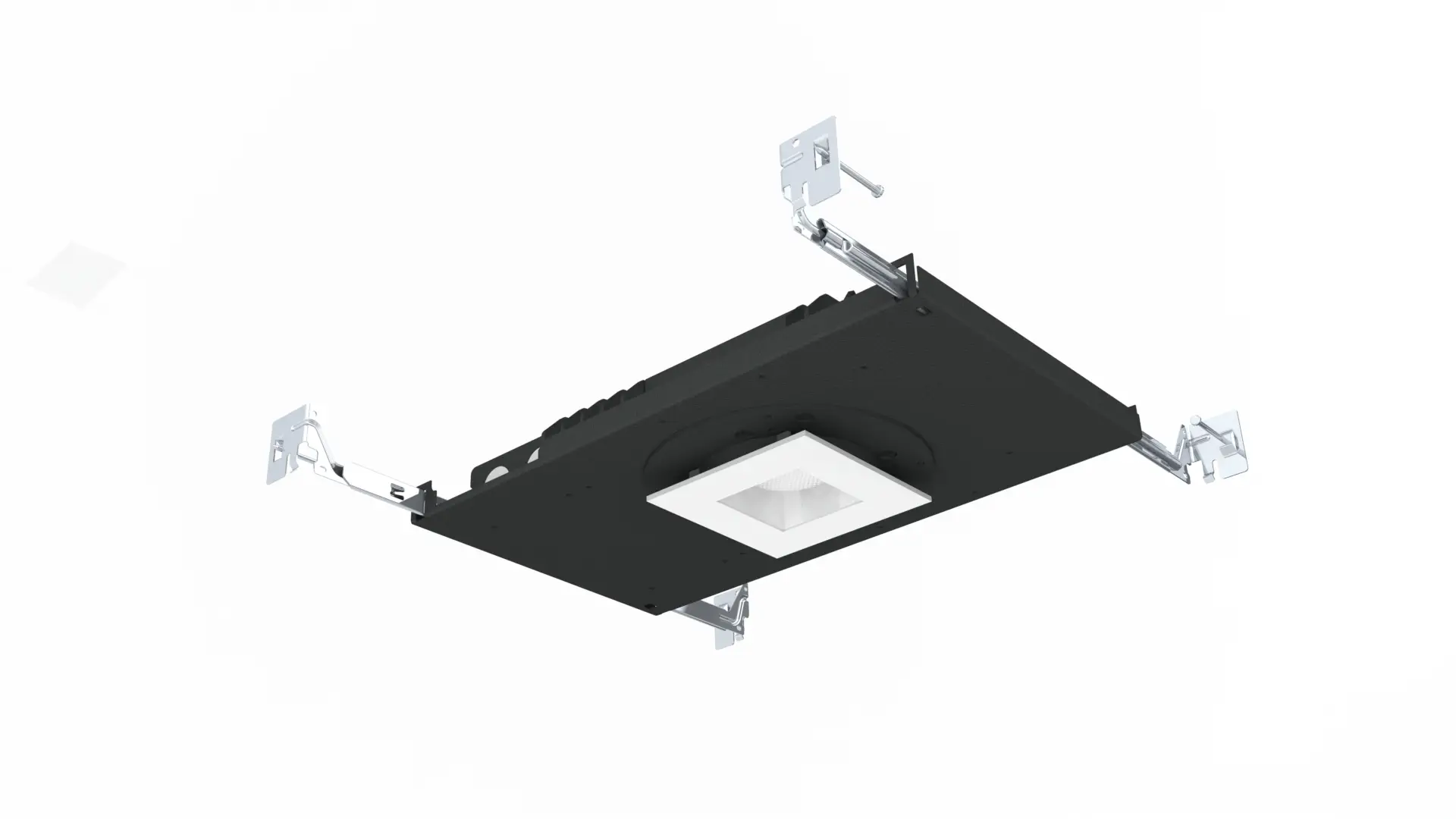

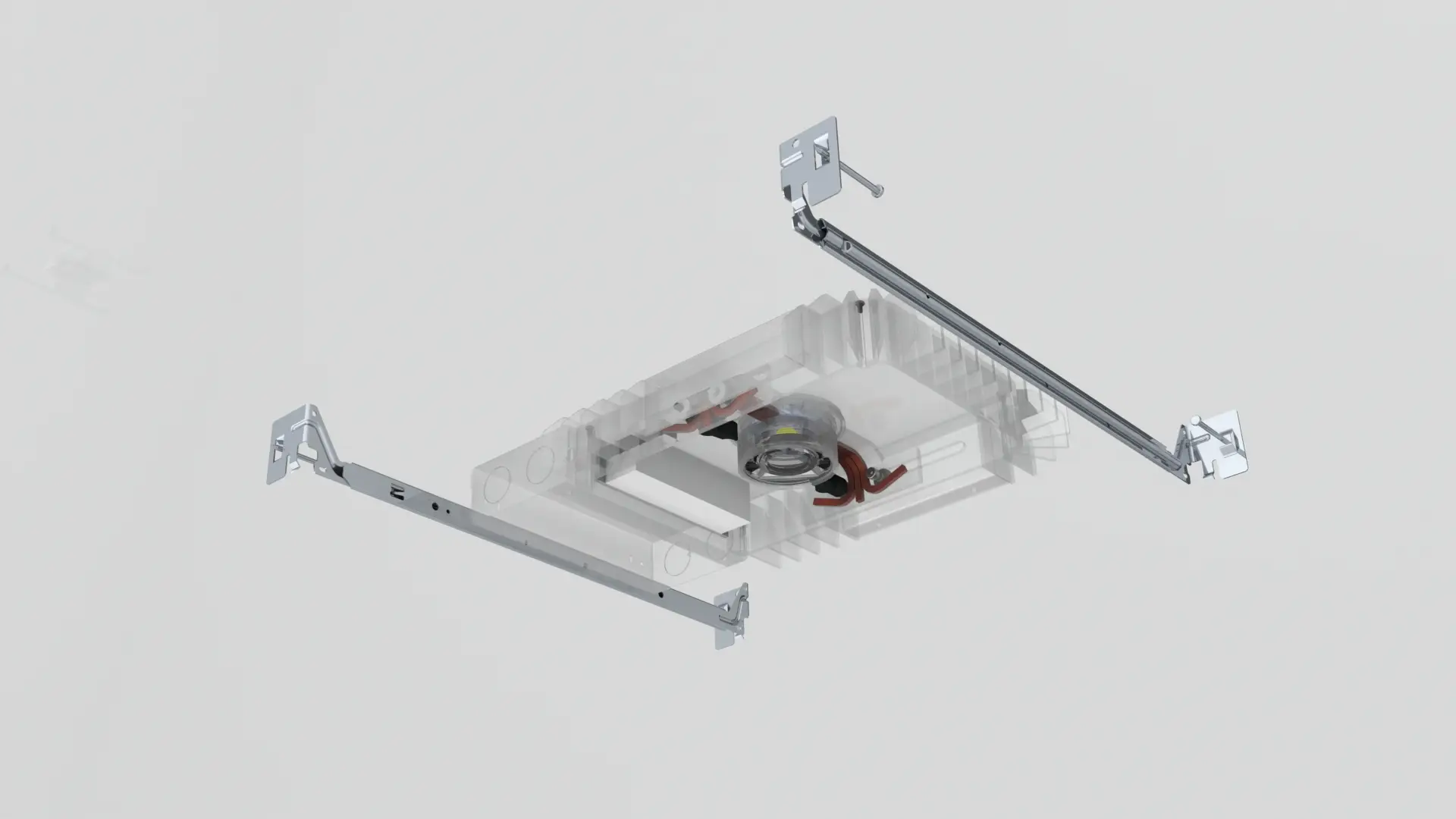

Utilizing our patented heat pipe technology, the Novation® Ultra Shallow Downlight is the shallowest downlight on the market, boasting a height of just 1.5? within the plenum. It is an ideal solution for a full featured downlight in even the shallowest of plenums.

Fully trimless trims available.

Product Code: NVTN-3-US
Volts: 120-277
Watts: Up to 18W
Color Temperature: 2700K, 3000K, 3500K, 4000K
Delivered Lumens
2700K: 1243Lm
3000K: 1299Lm
3500K: 1349Lm
4000K: 1431Lm
UL Listed for US and Canada. Suitable for Damp and Wet Locations
L70: >61,000 Hours
Tri-mode dimmable using Triac (forward phase), ELV ( reverse phase), or 0-10V dimming
With 0-10V dimming, dims down to 1%
Lutron driver available

Product Type:

Voltage:

CRI:

90 CRI, 95 CRI

Warranty:

Lamp Life:

Downloads

Download the files needed to review, specify, and plan this product for your project.

Specification Sheet

View Specification Sheet

Installation Sheet

View Installation Sheet

IES Files

NVTN-3-US-18W-90C-30K-3G-38D-AS-SQ-TRIM IES file

NVTN-3-US-13W-30K-3G-60D-AS-SQ-TRIM IES file

NVTN-3-US-18W-30K-90C-3G-60D-AS-SQ-TRIM IES file

NVTN-3-US-18W-35K-90C-3G-60D-AS-SQ-TRIM IES file

NVTN-3-US-18W-30K-90C-3G-24D-AS-SQ-TRIM IES file

NVTN-3-US-18W-27K-90C-3G-45D-AS-SQ-TRIM IES file

NVTN-3-US-18W-27K-90C-3G-38D-AS-SQ-TRIM-1 IES file

NVTN-3-US-18W-27K-90C-3G-45D-AS-SQ-TRIM-1 IES file

Revit Files

NVTN-3-US Revit File

Product Brochure

Specification Details

Product Code:

Product Type:

Application:

Voltage:

CRI:

Warranty:

Lamp Life:

Installation:

Lens Option:

Listing:

Patent Status:
