Pendant Mount for spec sheet 1

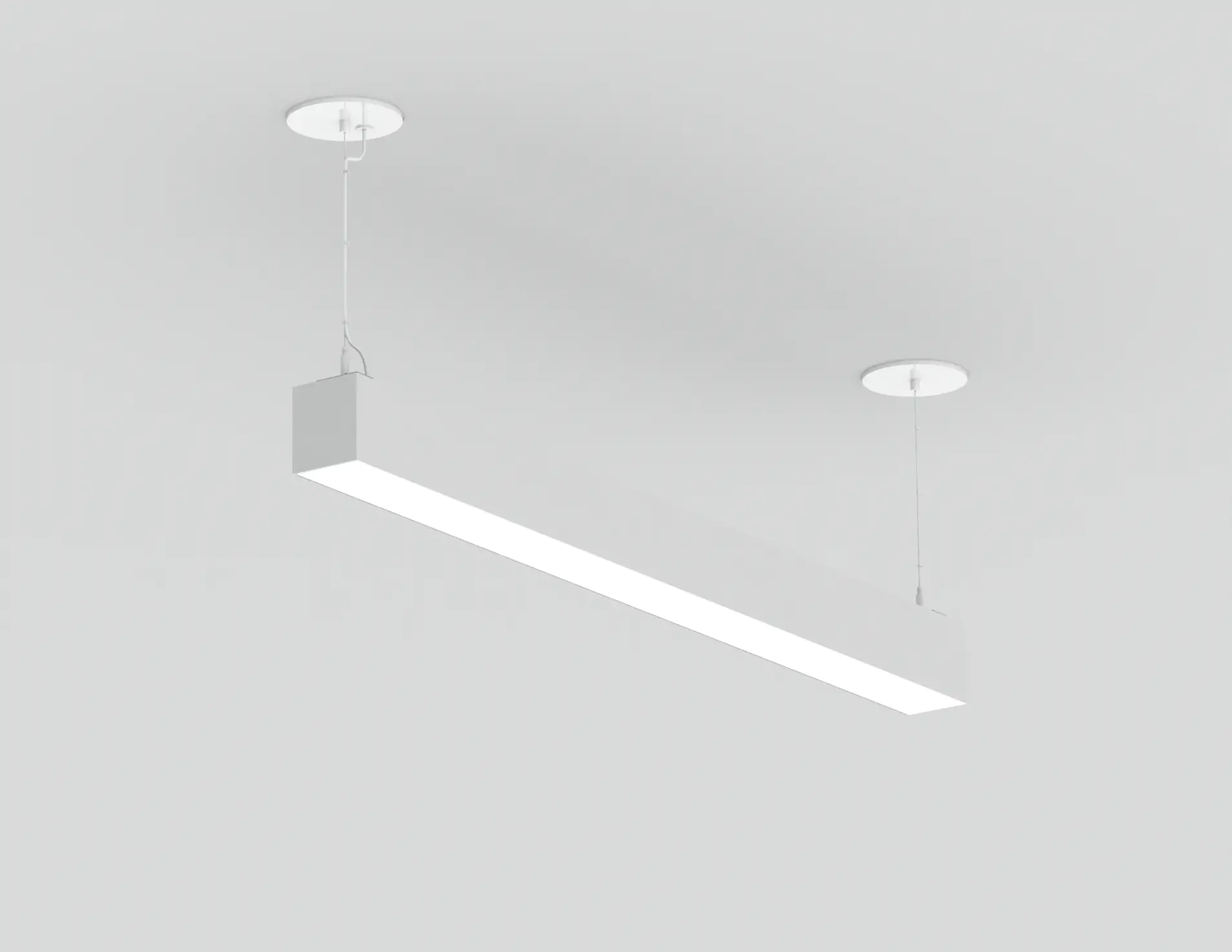

Stud™ – Pendant Mount

Description
Additional information
Downloads

The STUD is our most popular linear fixture. It is also the most flexible, allowing you to choose between recessed, surface or pendant mounted options. With the ability to connect one STUD to another, there’s not much you can’t do with this fixture!

Volts: 120-277V
Lumens: up to ~800Lm/ft
Watts: up to 9.38W/ft
Life: 50,000 Hours
CRI: Up to 95CRI
Dimmable down to 1% using a 0-10v dimming switch
Flicker free
Lutron driver available

Downloads

View Pendant Mount Specification Sheet
View System Run Instruction Sheet

STUD-3-2G-Pendant-Mount-Spec-Sheet-A03-1 test

Stud™ – Pendant Mount

$0.00

Order Number :

Product	fixture-length	watts	mounting	color-temperature	housing-finish	Optics	Driver	Options	IC Control
STUD3	8"-8 Feet XX- System run specifiable to the inch	HLW- High, 9.38W/ft LLW- Low, 5W/ft SLW- Standard, 7.5W/ft XX- Custom	PM- Pendant Mount	27K-2700K 30K-3000K 35K-3500K 40K-4000K	WH-White XX- Custom Powder Coating	- Standard Lens DRP- Drop Lens ASM- Asymmetric Lens	ST- Standard LE- Lutron Ecosystem	EM - Emergency Pack 6WH120- 6' Control Whips, 120V 6WH277- 6' Control Whips, 277V	DS- Daylight Sensor OS- Occupancy Sensor DOS- Daylight & Occupancy Sensor

SKU: N/A Category: LED Linear Fixtures

' '
