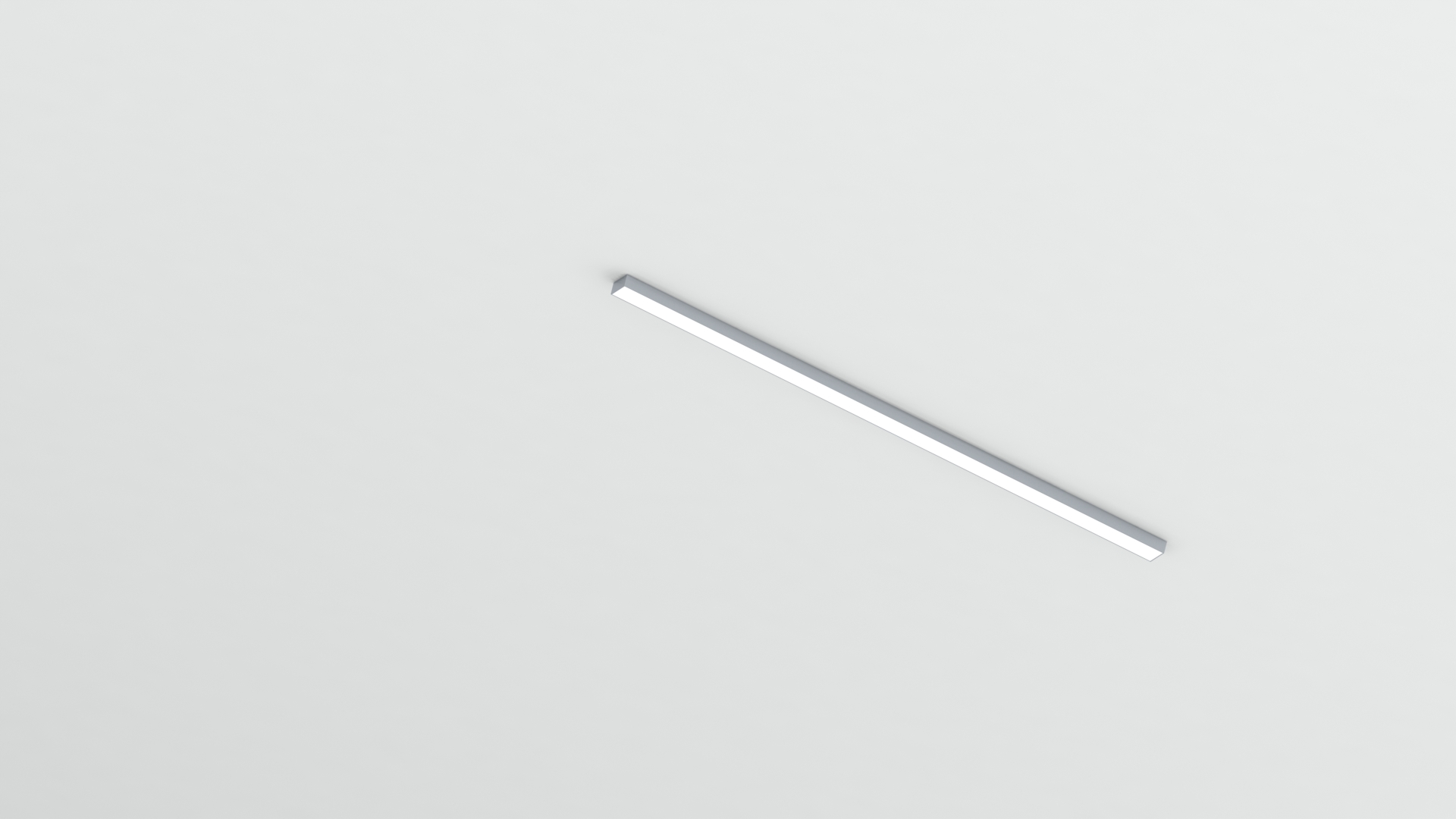

Zenlite® 2 Inch Lighting System

Surface Mount

ZENLITE® SM2 is an LED Lighting System for mounting in or on stone and wood or other hard surfaces. Our patent-pending design allows for projection of a clean horizontal,vertical and diagonal lines of light. The thickness of the channel is the same of as the actual thickness of 3/4” plywood which allows for easy and fast instillation in mill-work. The channel can be installed with magnets, clips or directly through the channel with the provided screws.

Product Code: ZNLT-SM2
Volts:
≥ 24V
CRI: ≥ 95
Warranty: 5 Years
Lamp Life: 50,000 Hours

US & International Patents Pending





Downloads

View Specification Sheet
View Installation Sheet

IES Files
ZNLT-SM2-XX-2ZGBM-4.4W-24V-95C-30K-DLNS IES File
ZNLT-SM2-XX-2ZGBM-8.8W-24V-95C-30K-DLNS IES File
ZNLT-SM2-XX-2ZGBM-8.8W-24V-95C-30K-OLNS IES File
ZNLT-SM2-XX-2ZGBM-24V-95C-27K-DLNS IES File
ZNLT-SM2-XX-2ZGBM-24V-95C-35K-DLNS IES File
ZNLT-SM2-XX-2ZGBM-24V-95C-40K-DLNS IES File

ZNLT-SM2-XX-2ZGBL-4.4W-24V-95C-30K-DLNS IES File
ZNLT-SM2-XX-2ZGBL-24V-95C-27K-DLNS IES File
ZNLT-SM2-XX-2ZGBL-24V-95C-35K-DLNS IES File
ZNLT-SM2-XX-2ZGBL-24V-95C-40K-DLNS IES File

Revit Files
ZNLT-SM2 Revit File


Zenlite® 2 Inch Lighting System

Surface Mount

$1.00

Order Number :
Producttypesfixture-lengthLight Modulevoltscolor-temperatureLensDriverhousing-finish












































SKU: N/A Categories: ,
