Zenlite^® 1 Inch Lighting System

Pendant Mount

Description
Additional information
Downloads

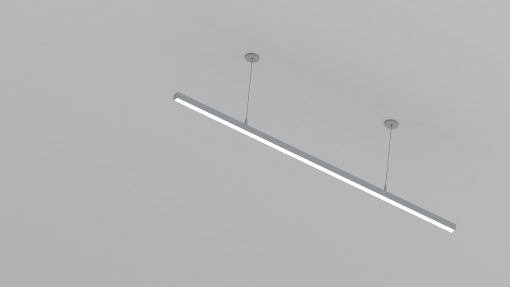

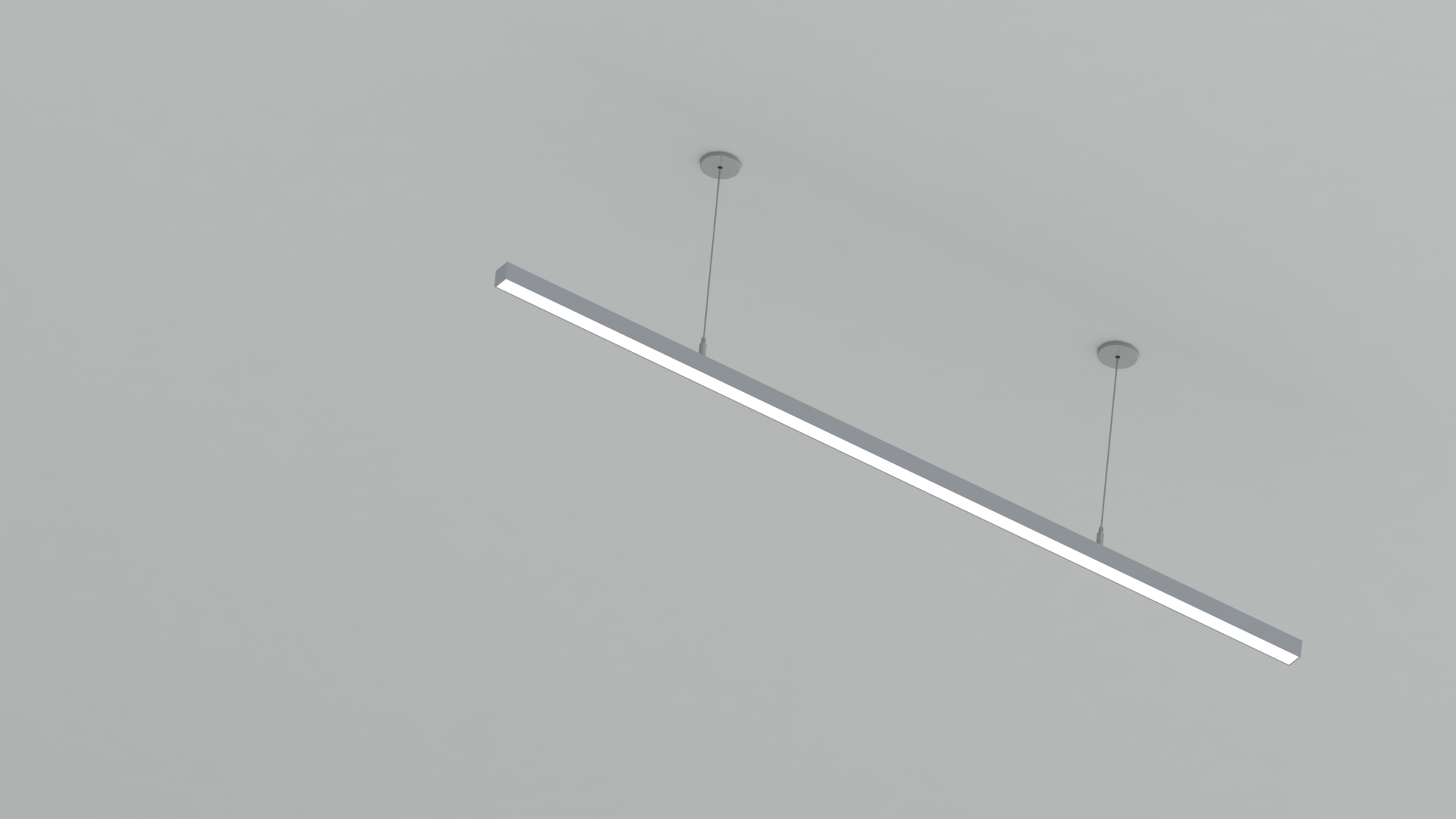

ZENLITE PM1® is a Pendant mount LED Lighting System that allows for a sleek projection of horizontal, vertical, and diagonal lines of light. This can be combined with ZENLITE® surface as well as ZENLITE® recessed to form a continuous seamless light.

Product Number: ZNLT-PM1
Volts: ≥ 24V
CRI: ≥ 95
Warranty: 5 Years
Lamp Life: 50,000 Hours

US & International Patents Pending

Downloads

View Specification Sheet
View Installation Sheet

IES Files
ZNLT-PM1-XX-HIHE-24V-95C-30K-DLNS IES file
ZNLT-PM1-XX-HIHE-24V-95C-30K-OLNS IES file

ZNLT-PM1-XX-ZGBM-24V-95C-30K-DLNS IES file
ZNLT-PM1-XX-ZGBM-24V-95C-30K-OLNS IES file
ZNLT-PM1-XX-ZGBM-24V-95C-35K-DLNS IES file
ZNLT-PM1-XX-ZGBM-24V-95C-35K-OLNS IES file

Revit Files
ZNLT-PM1 Revit file

ZNLT-PM1-1-HIHE-24V-95C-30K-DLNS test

ZNLT-PM1-1-HIHE-24V-95C-30K-OLNS test

ZNLT-PM1-1-ZGBM-24V-95C-30K-DLNS test

ZNLT-PM1-1-ZGBM-24V-95C-30K-OLNS test

ZNLT-PM1-1-ZGBM-24V-95C-35K-DLNS test

ZNLT-PM1-1-ZGBM-24V-95C-35K-OLNS test

ZENLITE-PM1-Installation-Sheet-1 test

ZNLT-PM1 test

ZENLITE-PM1-Spec-Sheet-B06 test

Zenlite^® 1 Inch Lighting System

Pendant Mount

$1.00

Order Number :

Product	fixture-length	Light Module	volts	color-temperature	Lens	Driver	housing-finish	c-r-i
ZNLT-PM1	XX-Custom Length (in feet)	ZGBL- (Zigbeam Low) ZGBM- (Zigbeam) ZGBC- (Zigbeam Cool) HRGB- (Red/Green/Blue) HRGBW- (Red/Green/Blue/White)	24V-24 Volts	27K-2700K 30K-3000K 35K-3500K 40K-4000K	CLNS- Clear DLNS-Diffused OLNS-Opal	MG- (1% Magnetic Dimming) ZO- (1% 0-10V Dimming) NN- Non Dimming L3- Lutron Hi-lume 1% 3-wire/ Eco system LP- Lutron Hi-lume Premier 0.1% Eco System/3-wire	BK-Black Powder Coated WH-White XX- Custom Powder Coating	95C-95CRI

SKU: N/A Categories: All Products, LED Linear Fixtures
