Zenlite^® Arc 2 Inch Curved Lighting System

Indirect-Pendant Mount

Description
Additional information
Downloads

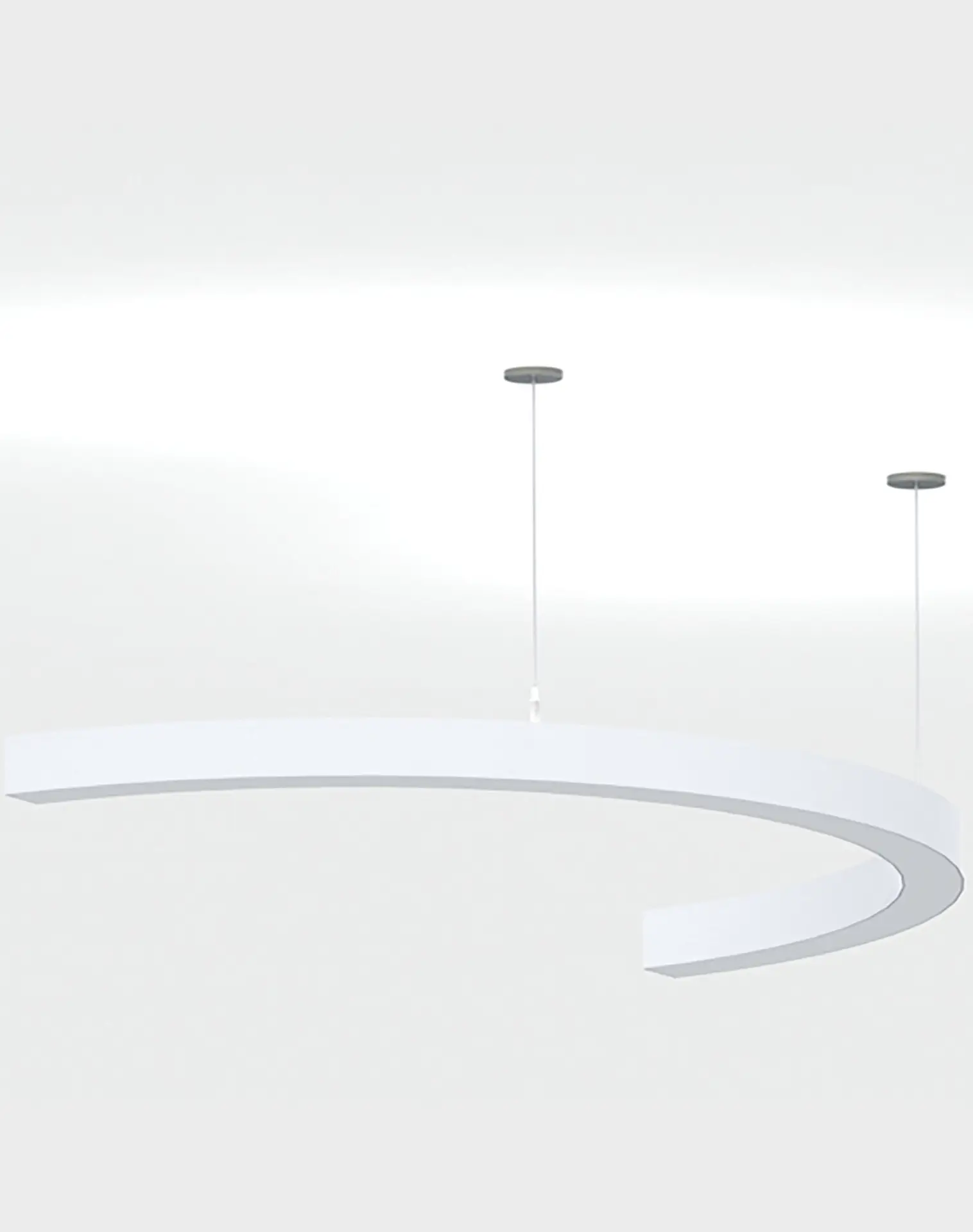

ZENLITE® Arc2 Pendant Mount Indirect is a 2” curved LED Lighting System that shines light towards the ceiling. It can be specified to any curvature of a 30” diameter and above. This fixture can be combined with Arc2 surface and recessed to create one continuous seamless light. ZENLITE® Arc2 Pendant Mount Indirect, along with the rest of the ZENLITE® series, allows for complete freedom of light design.

Product Code: ZNLT-ARC2-PM-ID
Volts: 24V
CRI: ≥ 95
IP Protection: IP20
Warranty: 5 Years
Lamp Life: > 50,000 Hours

US & International Patents Pending.

Downloads

View Specification Sheet
View Installation Sheet Coming Soon

IES Files
Coming Soon

Revit Files
ZNLT-ARC2-PM-ID Revit Files

ZNLT-ARC2-PM-ID test

ZNLT-ARC2-PM-ID-Spec-Sheet-B09-1 test

Zenlite^® Arc 2 Inch Curved Lighting System

Indirect-Pendant Mount

$1.00

Order Number :

Product	type-fixture	fixture-length	curve-type	curve-radius	Light Module	voltage	c-r-i	color-temperature	Lens	housing-finish	Pendant	Driver
ZNLT-ARC2PM-ID	AS- Arc Segment CIR- Full Circle ST- Straight	XX-Custom Length (in inches)	SC- Side Curve	-XXR- Radius (in inches)	ATBM- (Arc Two Beam) 2HIHE - (Hi Beam Hi Efficacy) 2COBE - (2 Cool Beam) 2HRGB - (Red/Green/Blue) 2HRGW - (Red/Green/Blue/White)	24V	95C-95CRI	27K-2700K 30K-3000K 35K-3500K 40K-4000K	DLNS - (Diffused Lens) CLNS - (Clear Lens)	BK-Black Powder Coated WH-White XX- Custom Powder Coating	5RAW36 - (Feed/Non-Feed 5" (White) Round Canopy with 36" Aircraft Cable (Default) 5RAB36 - (Feed/Non-Feed 5" (Black) Round Canopy with 36" Aircraft Cable Custom	MG- (1% Magnetic Dimming) ZO- (1% 0-10V Dimming) NN- Non Dimming L3- Lutron Hi-lume 1% 3-wire/ Eco system LP- Lutron Hi-lume Premier 0.1% Eco System/3-wire
