Zenlite® Arc 1 Inch Curved Lighting System for 5/8″ Drywall

Description
Additional information
Downloads

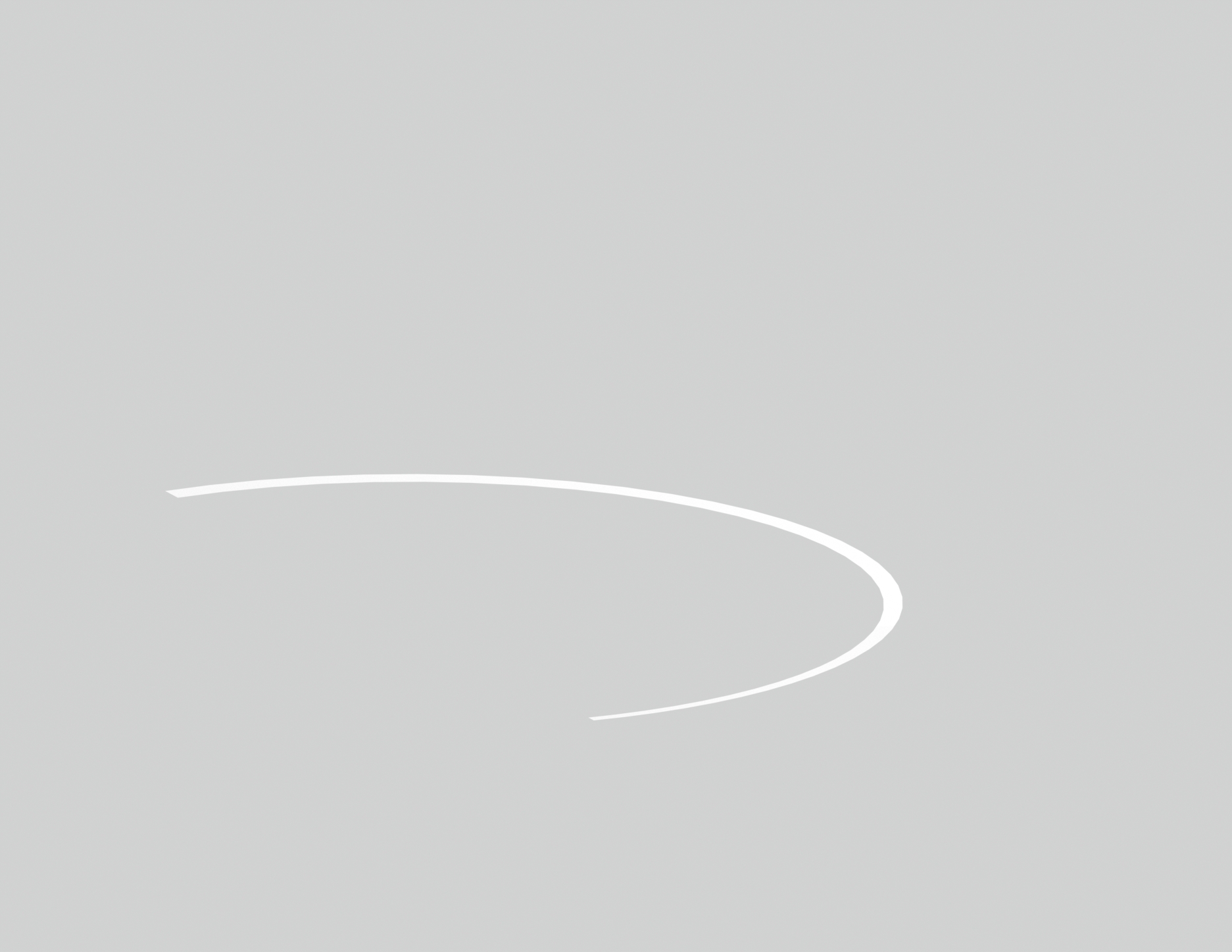

ZENLITE® ARC is the curved version of our Zenlite fixture. It’s a LED Lighting System for New Construction – 5/8” Drywall Walls/Ceilings. Our
patent-pending design allows for projection of a clean line of light. Channel is installed directly to studs with 16-inch spacing screw holes.

Volts: 24V
CRI: ≥ 95
Warranty: 5 Years
Lamp Life: > 50,000 Hours

US & International Patents Pending

Downloads

View Specification Sheet
View Installation Instructions

IES Files:

ZNLT-ARC1-2COBE-24V-95C-30K-DLNS IES File

ZNLT-ARC1-2BEAM-24V-95C-35K-DLNS IES File

ZNLT-ARC1-ACBM-24V-95C-27K-DLNS IES File

ZNLT-ARC1-ACBM-24V-95C-30K-DLNS IES File

ZNLT-ARC1-ACBM-24V-95C-35K-DLNS IES File

ZNLT-ARC1-ACBM-24V-95C-40K-DLNS IES File

REVIT FILE
ZNLT-ARC1 Revit File

ZNLT-ARC-NC1-1-COBE-24V-95C-30K-DLNS test

ZNLT-ARC-NC1-1-2COBE-24V-95C-30K-DLNS test

ZNLT-ARC1-2BEAM-24V-95C-35K test

ZNLT-ARC1-2COBE-24V-95C-30K-DLNS test

ZNLT-ARC1-ACBM-24V-95C-27K-DLNS test

ZNLT-ARC1-ACBM-24V-95C-30K-DLNS test

ARC1 test

Zenlite® Arc 1 Inch Curved Lighting System for 5/8″ Drywall

$0.00

Order Number :

Product	fixture-length	Light Module	volts	c-r-i	color-temperature	Driver
ZNLT-ARC1	XX-Custom Length (in feet)	ACBM- (1 Arc Beam) ACBL- (1 Arc Beam Low) ACBC- (1 Arc Beam Cool) 2HRGB- (2 Red/Green/Blue) HRGBW- (2 Red/Green/Blue/White)	24V-24 Volts	95C-95CRI	27K-2700K 30K-3000K 35K-3500K 40K-4000K	MG- (1% Magnetic Dimming) ZO- (1% 0-10V Dimming) NN- Non Dimming L2- Lutron Hilume 1% 2-wire L3- Lutron Hi-lume 1% 3-wire/ Eco system LP- Lutron Hi-lume Premier 0.1% Eco System/3-wire

SKU: N/A Categories: All Products, LED Linear Fixtures
