BEAM

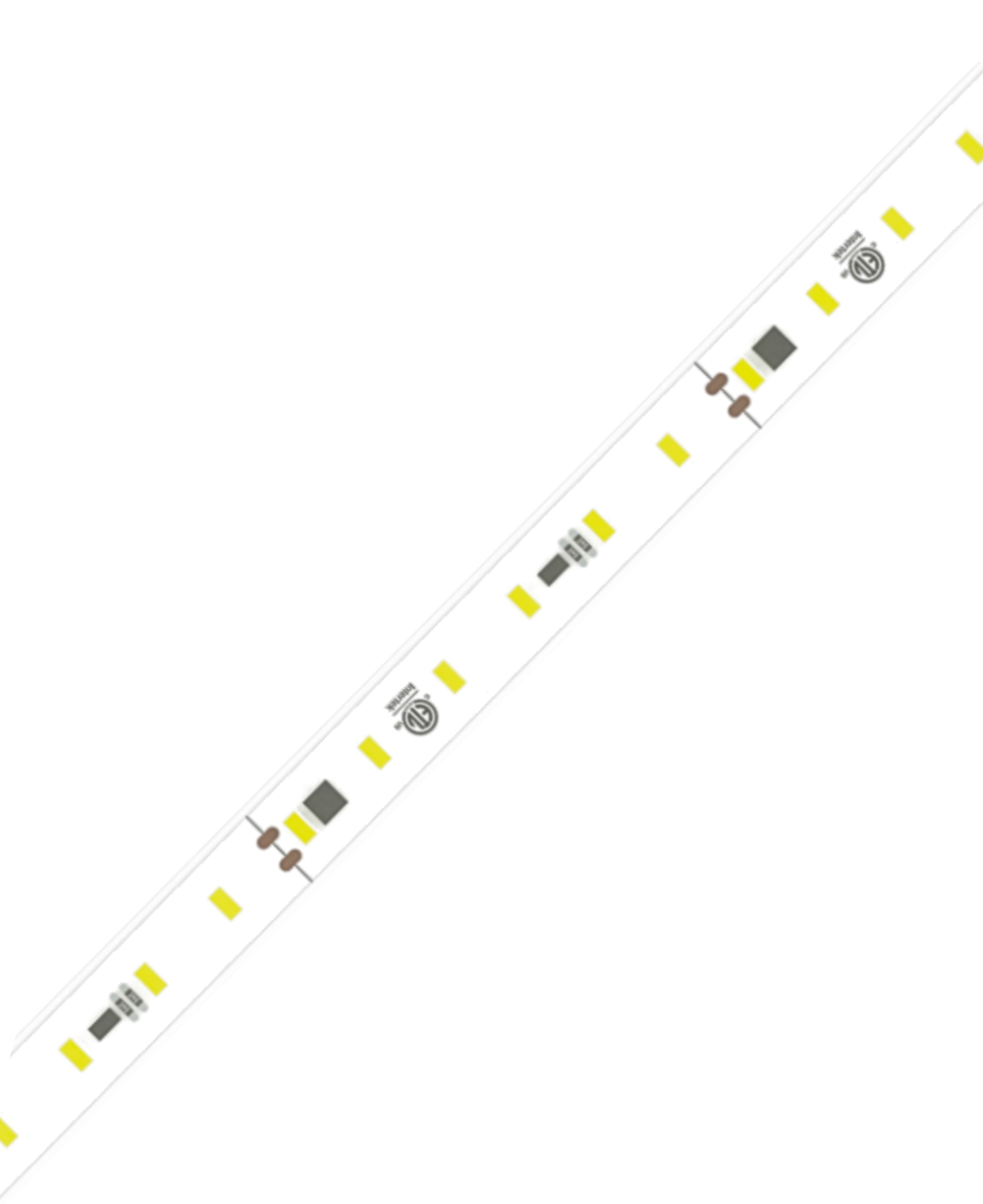

All PreciseLED tape light products feature a flexible copper core and are cut and soldered to specified length in our factory. PreciseLED tape lights additionally have best-in-class color rendering, color consistency, and, when combined with our dimming drivers, dimming and flickering performance. Our Beam tape light is our most economical tape light. Its ultra-low profile enables installation practically anywhere. It comes with a 3M adhesive back which makes the installation easy, clean, and safe!

Volts: 24V
Watts per foot: 2.93W/ft
Lumens per foot: 178Lm/ft
CRI: ≥ 95
Protection Rating: IP20
Max Run: 26.24 feet
Warranty: 5 Years
UL Listed for US and Canada
Lutron Driver Available

Downloads

View Specification Sheet
View Installation Sheet
View Voltage Drop Chart
View Egnite Information Sheet

IES Files
BEAM-24V-95C-27K
BEAM-24V-95C-30K
BEAM-24V-95C-35K
BEAM-24V-95C-40K

BEAM-24V-95C-27K, Figure Channel, Clear Lens
BEAM-24V-95C-30K, Figure Channel, Diffuse Lens
BEAM-24V-95C-30K, Figure Channel, Opal Lens

BEAM-24V-95C-30K, Figure Flat Channel, Clear Lens
BEAM-24V-95C-30K, Figure Flat Channel, Diffuse Lens
BEAM-24V-95C-30K, Figure Flat Channel, Opal Lens

BEAM-24V-95C-30K, Figure Slim Channel, Clear Lens
BEAM-24V-95C-35K, Figure Slim Channel, Diffuse Lens
BEAM-24V-95C-30K, Figure Slim Channel, Opal Lens

BEAM-24V-95C-30K, Connect Wide Channel, Clear Lens
BEAM-24V-95C-30K, Connect Wide Channel, Diffuse Lens
BEAM-24V-95C-30K, Connect Wide Channel, Opal Lens

BEAM-24V-95C-30K, 45 Degree Channel, Clear Lens
BEAM-24V-95C-30K, 45 Degree Channel, Diffuse Lens
BEAM-24V-95C-30K, 45 Degree Channel, Opal Lens

Revit Files
Beam Revit File


BEAM

$0.00

2.9 watts.ft icon 165 lumens
