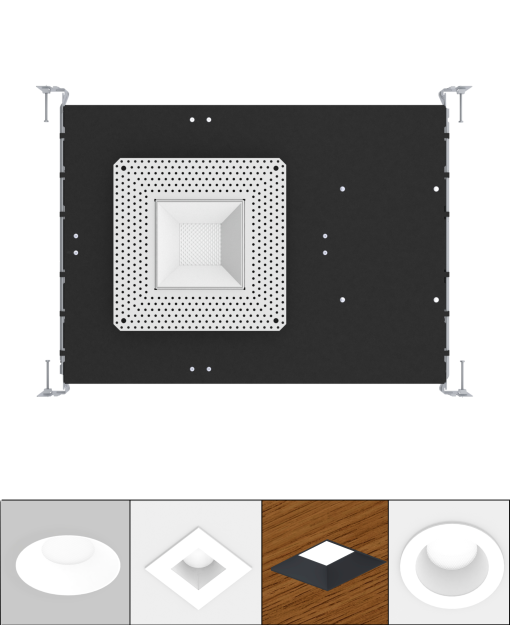

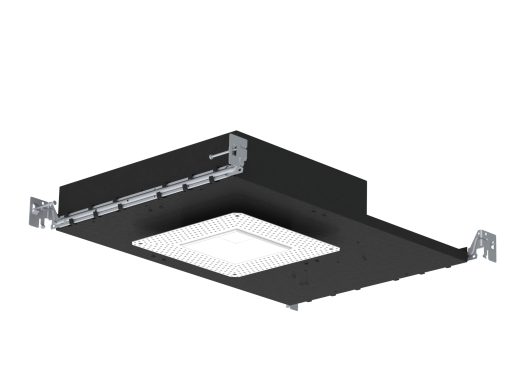

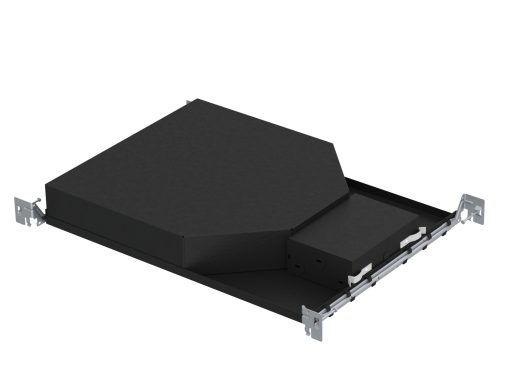

Novation® 3″ LED Downlight New Construction
Adjustable Shallow Housing Version

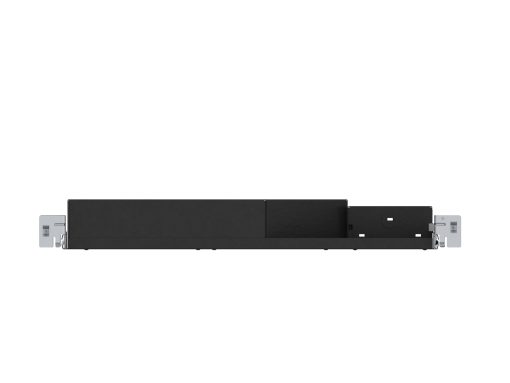

Novation® Shallow Adjustable Housing is a pioneer in LED Downlighting, utilizing proprietary water-cooling technology to allow for 359° rotation and 30° pivot in a housing that is just 2½” in depth.
Fully trimless trims available.
Volts: 120-277
Watts: 23W/14W/10W
Color Temperature: 2700K, 3000K, 3500K, 4000K
Delivered Lumens (60° Beam spread) at 23W, with 90 CRI
2700K: 1456Lm
3000K: 1625Lm
3500K: 1771Lm
4000K: 1878Lm
UL Listed for US and Canada. Suitable for Damp Locations
L70: >61,000 Hours
Tri-mode dimmable using Triac (forward phase), ELV ( reverse phase), or 0-10V dimming
With 0-10V dimming, dims down to 1% at 23W performance level
Lutron driver available
Downloads
View Specification Sheet
View Installation Sheet
View Driver Replacement Installation Sheet
View Brochure
IES Files
NVTN-3-SA-14W-27K 3G with NVTN-3-TRIM-B-RD-WH-WH, 15 Degree Spread
NVTN-3-SA-14W-27K 3G with NVTN-3-TRIM-B-RD-WH-WH, 24 Degree Spread
NVTN-3-SA-23W-30K 3G with NVTN-3-TRIM-B-SQ-WH-WH, 38 Degree Spread
NVTN-3-SA-23W-30K 3G with NVTN-3-TRIM-B-SQ-WH-WH, 45 Degree Spread
NVTN-3-SA-23W-30K 3G with NVTN-3-TRIM-B-SQ-WH-WH, 60 Degree Spread
Revit Files
Coming Soon
NVTN-3-SA-3G-Spec-Sheet-A05-2 test
NVTN-3-SA-23W-30K-90C-38DEG-TRIMB-SQ-WH-1 test
NVTN-3-SA-23W-30K-90C-60DEG-TRIMB-SQ-WH-1 test
NVTN-3-SA-14W-27K-90C-15DEG-TRIMB-RD-WH-1 test
NVTN-3-SA-14W-27K-90C-24DEG-TRIMB-RD-WH-1 test
NVTN-3-SA-23W-30K-90C-45DEG-TRIMB-SQ-WH-1 test
NVTN-3-SA-Driver-Replacement-Instruction-Sheet-A03 test
