Novation® 3″ LED Downlight

Fixed

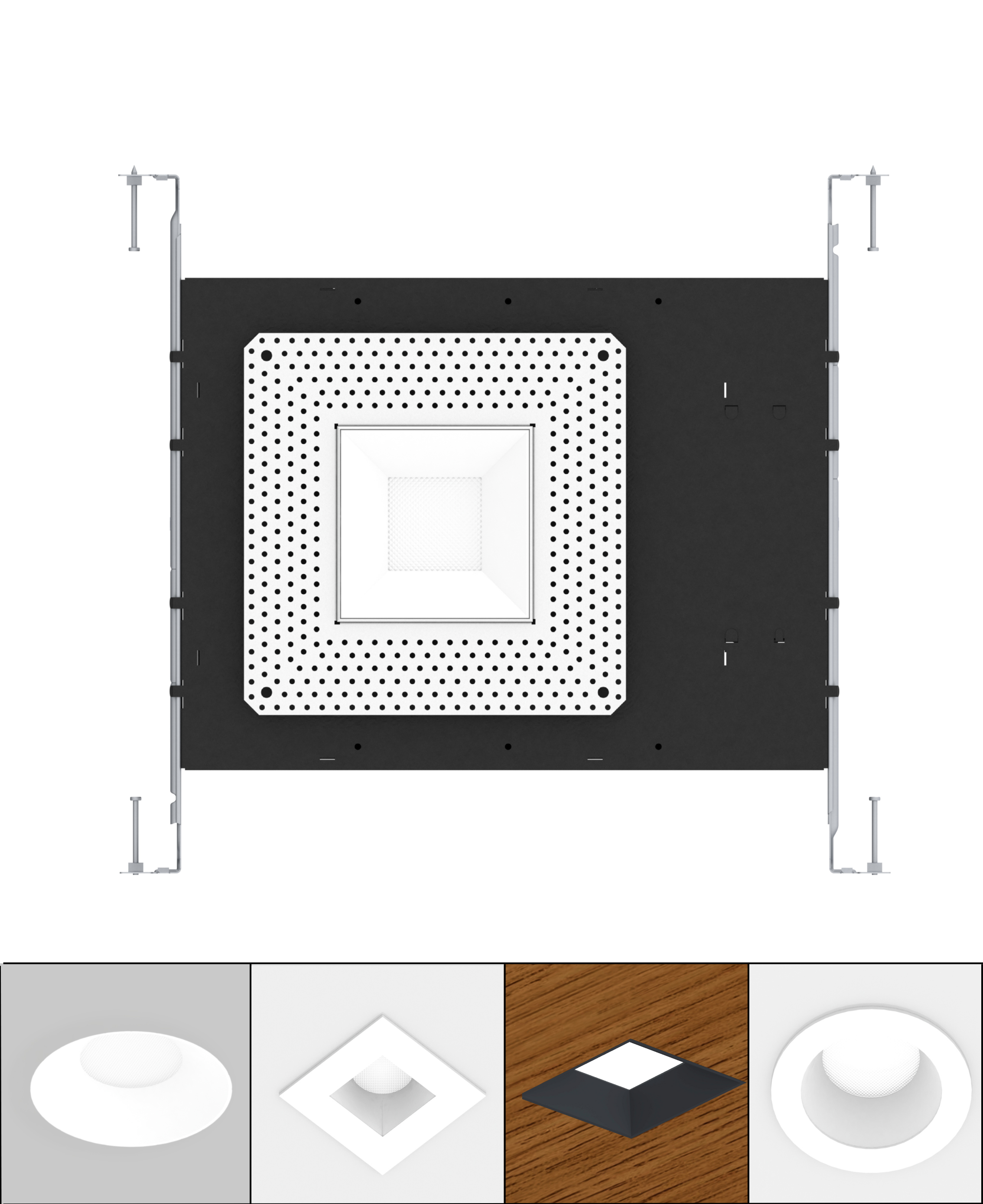

PreciseLED’s 3″ Novation IC Downlight is our entry level dedicated LED downlight that allows a wide variety of trims and accessory options. It is a best-in-class solution for new construction with interchangeable beam spread lenses.

Fully trimless trims available.

Product Code: NVTN-3-IC
Volts:
120-277
Watts: 23W
Color Temperature: 2700K, 3000K, 3500K, 4000K
Delivered Lumens
2700K: 1340Lm
3000K: 1500Lm
3500K: 1630Lm
4000K: 1730Lm
UL Listed for US and Canada. Suitable for Damp Locations
L70: >61,000 Hours
Tri-mode dimmable using Triac (forward phase), ELV ( reverse phase), or 0-10V dimming
With 0-10V dimming, dims down to 1%
Lutron driver available







Downloads

View Specification Sheet
View Installation Sheet
View Driver Replacement Installation Sheet

IES Files
NVTN-3-IC-23W-30K 3G with NVTN-3-TRIM-A-RD-WH-WH, 15 Degree Spread
NVTN-3-IC-23W-30K 3G with NVTN-3-TRIM-A-RD-WH-WH, 24 Degree Spread
NVTN-3-IC-23W-30K 3G with NVTN-3-TRIM-A-RD-WH-WH, 36 Degree Spread
NVTN-3-IC-23W-30K 3G with NVTN-3-TRIM-A-RD-WH-WH, 60 Degree Spread

NVTN-3-IC-23W-30K-3G with NVTN-3-TRIM-B-SQ-WH-WH, 15 Degree-Spread
NVTN-3-IC-23W-30K-3G with NVTN-3-TRIM-B-SQ-WH-WH, 24 Degree-Spread
NVTN-3-IC-23W-30K-3G with NVTN-3-TRIM-B-SQ-WH-WH, 36 Degree-Spread
NVTN-3-IC-23W-30K-3G with NVTN-3-TRIM-B-SQ-WH-WH, 60 Degree-Spread

Revit Files
Coming Soon


Novation® 3″ LED Downlight

Fixed

$0.00

Order Number :
Productwattscolor-temperatureCRIGenerationbeam-spread-lensDriverhousingOptional
















































Order Number :
Producttrim-typeouter-finishinner-finish
















SKU: N/A Category:
' '
