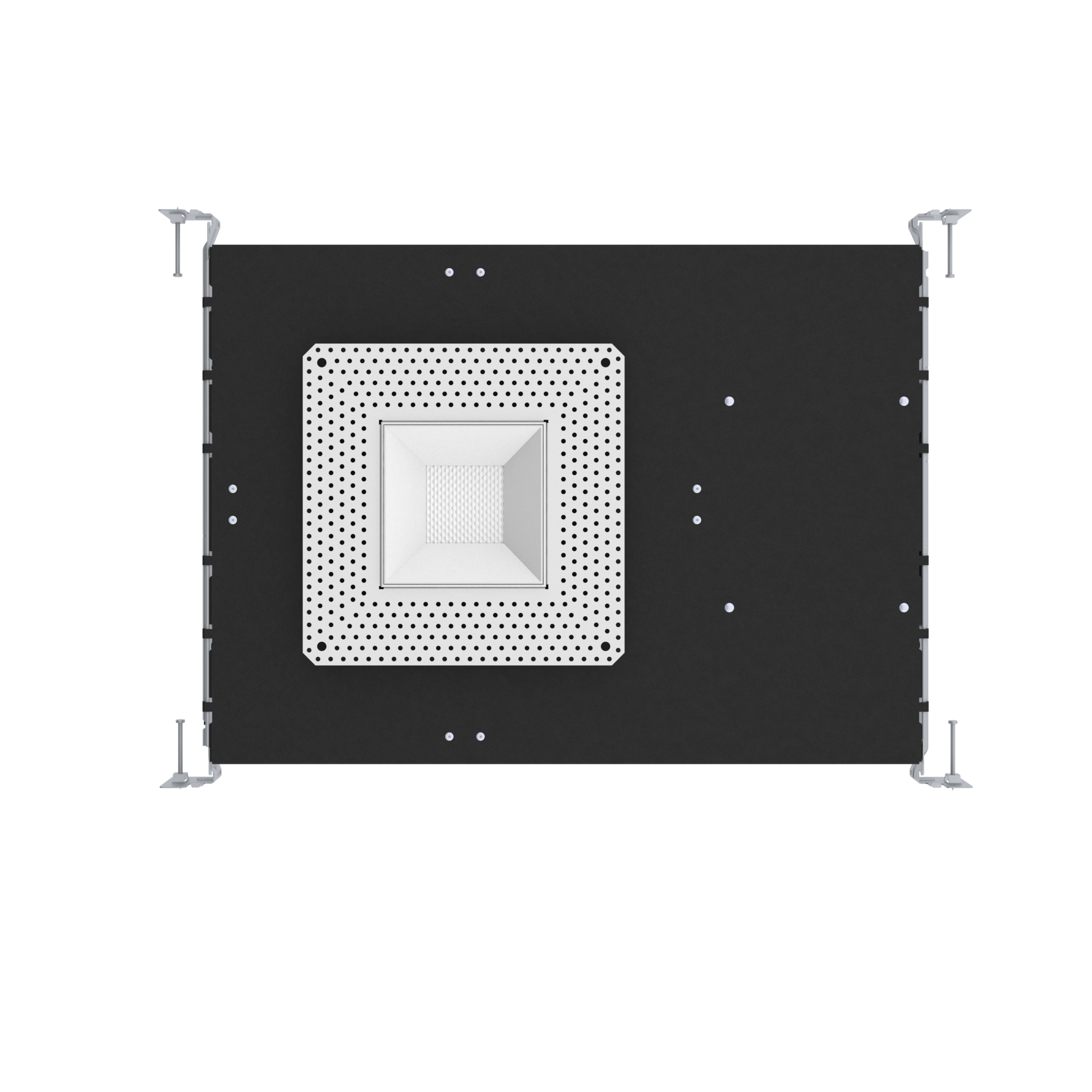

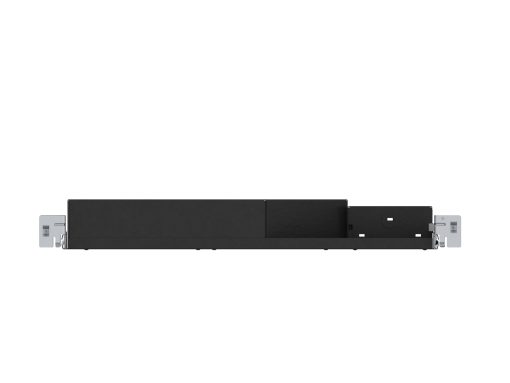

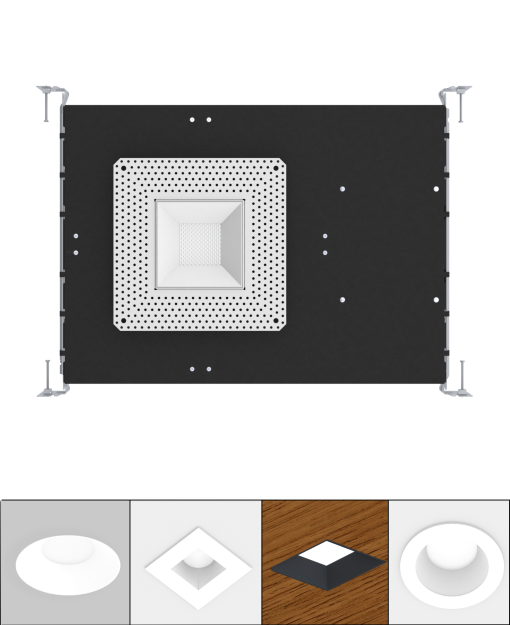

Novation® 3″ LED Downlight New Construction Non-Adjustable Shallow Housing Version

PreciseLED’s 3″ Novation Shallow Housing IC Downlight is one of the shallowest downlight on the market.

Fully trimless trims available.

Volts: 120-277
Watts: 30W/26W/23W/18W/10W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 18K30K (Dim to Warm)
Delivered Lumens (60° Beam spread) at 23W, with 90 CRI
2700K: 1456Lm
3000K: 1625Lm
3500K: 1771Lm
4000K: 1878Lm
UL Listed for US and Canada. Suitable for Damp Locations
L70: >61,000 Hours
Tri-mode dimmable using Triac (forward phase), ELV ( reverse phase), or 0-10V dimming
With 0-10V dimming, dims down to 1% at 23W performance level
Lutron driver available

Downloads

View Specification Sheet
View Installation Sheet

IES files

NVTN-3-SH-30W-35K 3G with NVTN-3-TRIM-B-RD-WH, 60 Degree Spread
NVTN-3-SH-14W-27K 3G with NVTN-3-TRIM-B-RD-WH, 15 Degree Spread
NVTN-3-SH-14W-27K 3G with NVTN-3-TRIM-A-RD-WH, 24 Degree Spread
NVTN-3-SH-23W-30K 3G with NVTN-3-TRIM-B-SQ-WH, 38 Degree Spread
NVTN-3-SH-23W-30K 3G with NVTN-3-TRIM-B-SQ-WH, 45 Degree Spread
NVTN-3-SH-23W-30K 3G with NVTN-3-TRIM-B-SQ-WH, 60 Degree Spread
