Gridline™

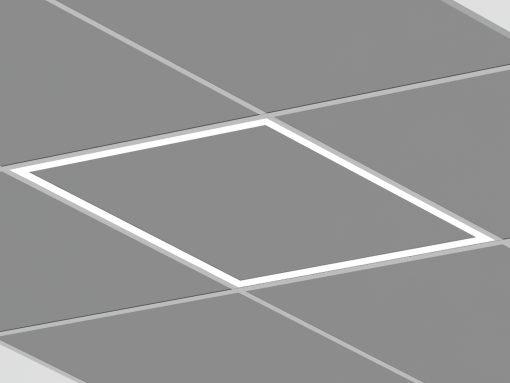

2×2 LED Grid Ceiling Perimeter Fixture

The Gridline™ is a perimeter fixture for a standard 2×2 ceiling grid. This is remotely installed on adjacent grid section. It provides stylish illumination for office and hospitality settings.

Watts: 36W
Input Volts: 120/277 VAC
CRI: ≥90 CRI
Color Consistency: 3-step binning LEDs
Driver: dimmable using 0-10V, flicker-free, remote mount
Housing Construction: extruded aluminum
Cut Tile Dimensions: 21.75’’ X 21.75’’
Mounting Options: Grid ceiling 9/16’’ T-bar, 15/16’’ T-bar, Tegular 9/16’’, Tegular 15/16’’, Screw Slot T-bar
Accessories: Safety/seismic brackets, T-bar driver hanger
Wires: UL plenum rated wire with male/female connector
Optics: Diffuse snap-in lens
Life: > 50,000 hours at 70% lumen maintenance (L70)
Warranty: 5 Year Limited Warranty

    100 277v icon

Downloads

View Specification Sheet
View Installation Sheet

IES Files
GDLN-TB-22-36W-90C-40K IES File

Revit Files
GRIDLINE-2X2-1 Revit File


Gridline™

2×2 LED Grid Ceiling Perimeter Fixture

$1.00

Order Number :
Producthousing-typeDimensionswattsc-r-icolor-temperaturefinish






















SKU: N/A Categories: ,
' '
